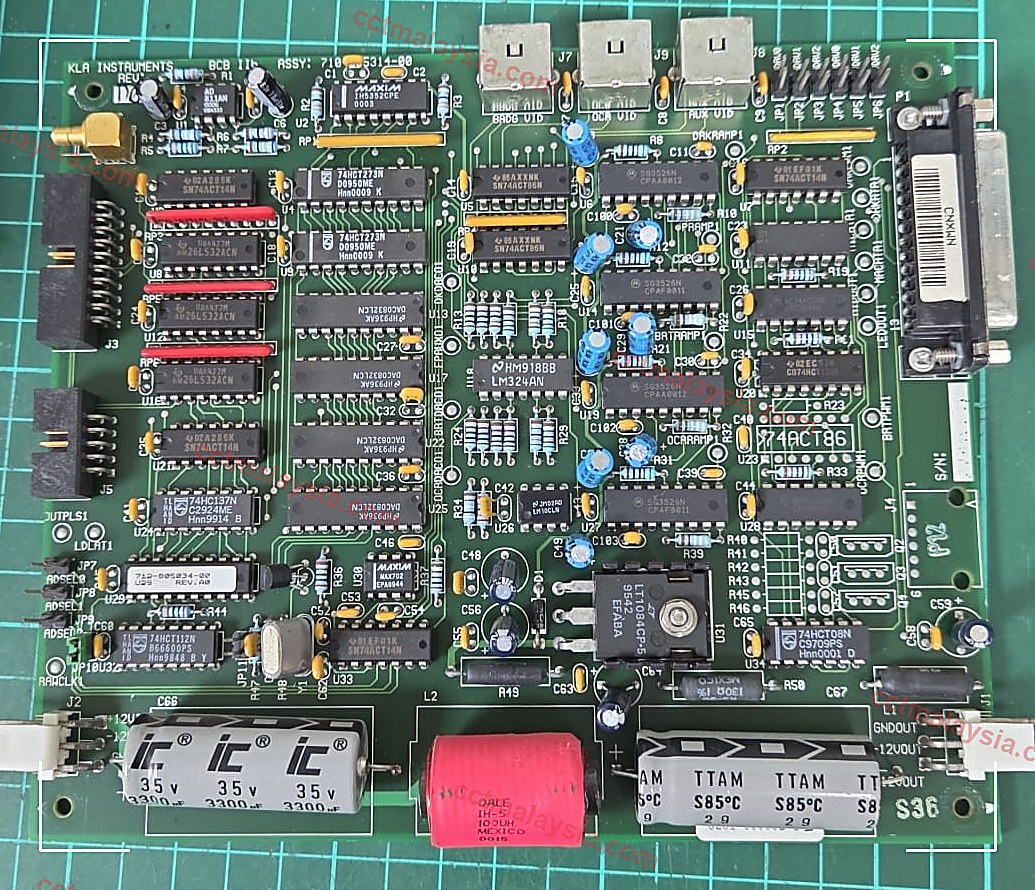

Illumination & video control board — KLA BCB IIb — Tokyo Electron (TEL) P8 / P8XL / P12 wafer prober part 3281-000052-11

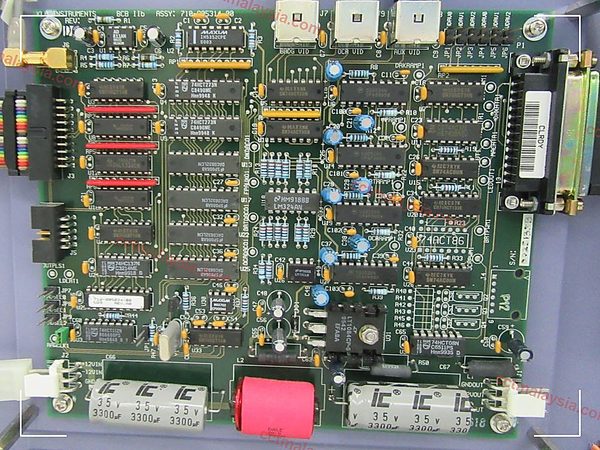

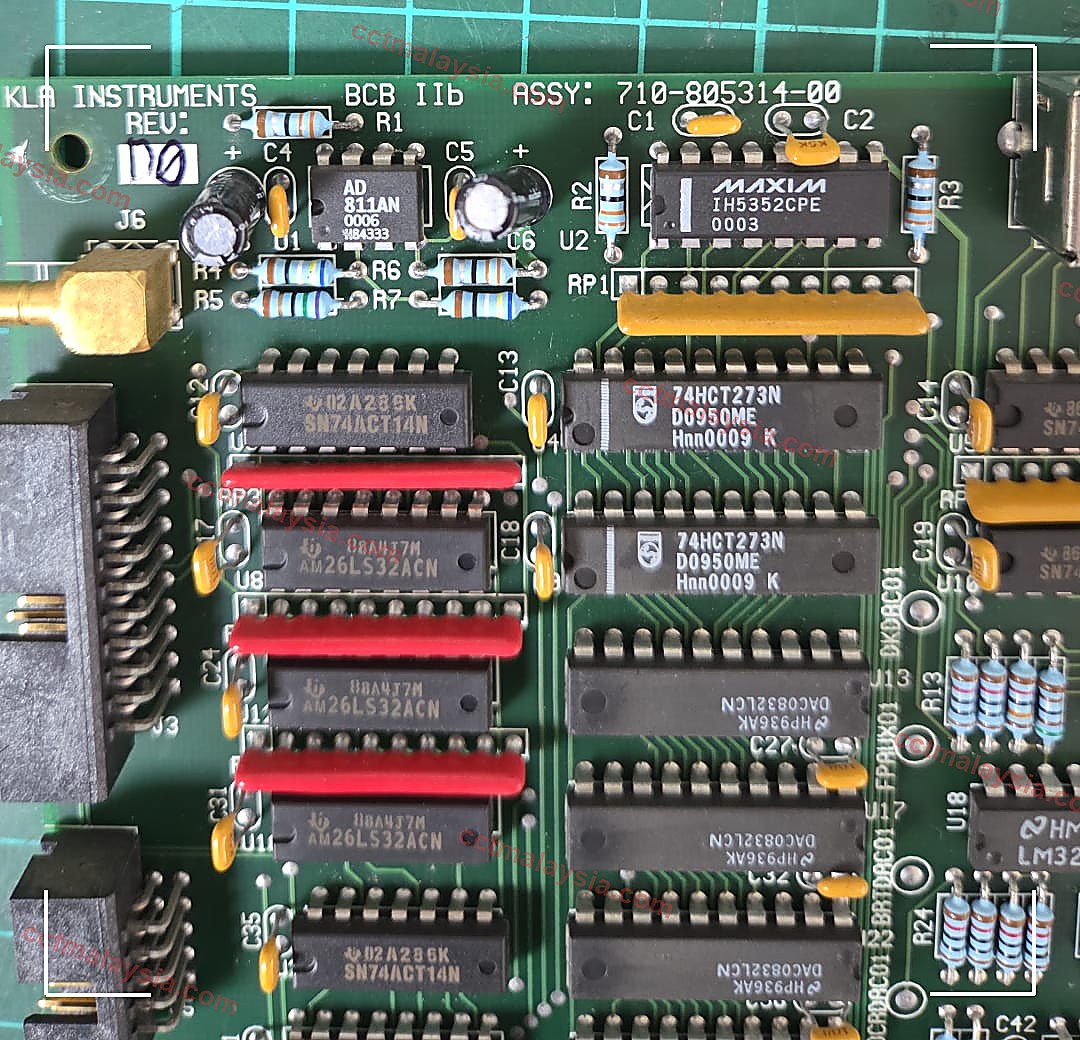

Board silkscreen: KLA Instruments · BCB IIb · ASSY 710-805314-00板面丝印：KLA Instruments · BCB IIb · ASSY 710-805314-00

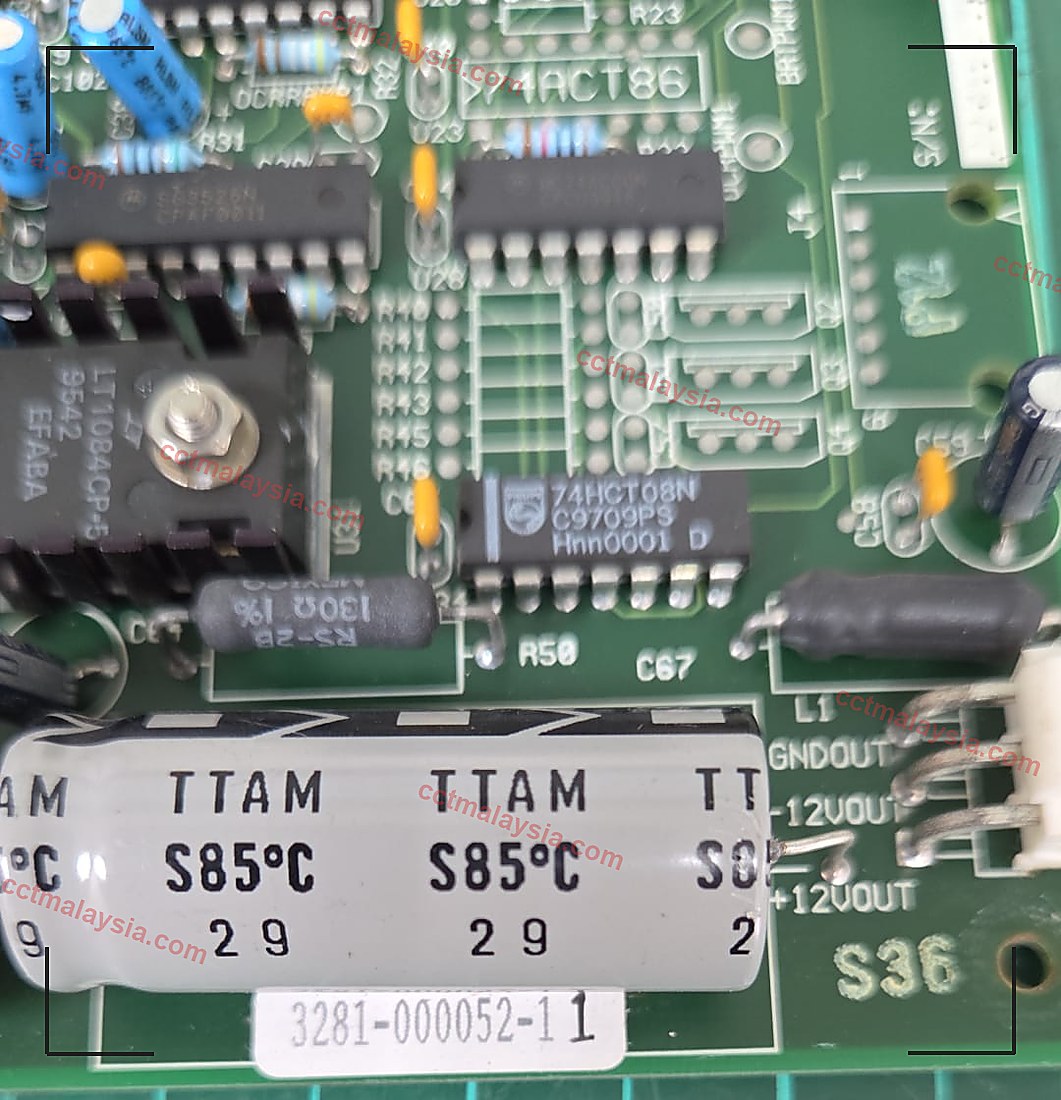

TEL part number label: 3281-000052-11TEL 料号标签：3281-000052-11

Part no.料号: 3281-000052-11
Vendor厂牌: KLA Instruments
Compatible适用机型: Tokyo Electron (TEL) P8 / P8XL / P12 wafer prober
Category分类: Control board控制板

3281-000052-11 On lead time (~21 days)备货（约 21 天） Send-in repair also available也接受寄修

Illumination & video control board — KLA BCB IIb — 3281-000052-11照明与视讯控制板 — KLA BCB IIb — 3281-000052-11

Name: Illumination & video control board — KLA BCB IIb
Brand: KLA Instruments
SKU: 3281-000052-11

P8P8XLP12KLA Instruments

About this part零件说明

KLA Instruments BCB IIb board, assembly 710-805314-00, carried under TEL part number 3281-000052-11. Three video inputs (BRDG / OCA / AUX), LED drive output, and brightness / dark ramp control lines (BRTRAMP, DAKRAMP1, OCARAMP1), with +12 V and -12 V rails brought out. Has been supplied in place of TEL 3381-000131-12 — confirm fit against your tool before ordering.

KLA Instruments BCB IIb 板，组件号 710-805314-00，TEL 料号 3281-000052-11。三路视讯输入（BRDG / OCA / AUX）、LED 驱动输出，以及亮度与暗场斜坡控制线（BRTRAMP、DAKRAMP1、OCARAMP1），并引出 +12V 与 -12V。曾作为 TEL 3381-000131-12 的替代品供货 — 下单前请先与贵司机台核对。

Repair维修

Yours already failed? We repair this one at component level — send it in, we diagnose it and verify the fix on a live machine. Usually faster than sourcing a replacement.

手上那颗已经坏了？这颗我们做板级维修 —— 寄给我们，诊断后在实机上验证修复，通常比重新找一颗新的快。

Alternate numbers替代料号

3381-000131-12710-805314-00
